Technical Requirement for pcb assembly:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Our advantage
1. Program and functional test and package by Free.
2. High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% functional test.
3. Professional service: PCB/FPC/Aluminium Making, SMT, DIP, Component Sourcing, OEM with 21 years experience.
4. Certifications: UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001,ISO13485,TS16949
5. The warranty period for PCBA: 2 years.
6. About Factory: 16 SMT Lines, 5 DIP Lines, 1 X-ray,16 AOI,2 Sample test machines.
| Product Parameter |
| Item(pcb) | Capability (pcb) |
| Base Material | FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon |
| Layers | 1-20 |
| Finised inner/outer copper thickness | 1-3OZ |
| Finished board thickness | 0.2-7.0mm |
| Min hole size | Mechanical hole: 0.15mm
Laser hole: 0.1mm |
| Controlled Impedance | +/-5% |
| Plugging vias capability | 0.2-0.8mm |
| Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
| Surface treatment | HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP… |

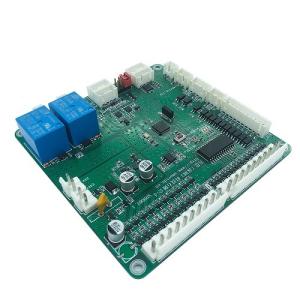

Product Picture
FAQ
Q1: What service can you provide?
CREAT: We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal, final assembly,
testing and other value-added service.
Q2: What are the main products of your PCB/PCBA services?
CREAT: PCB/PCBA services are mainly for the industries including Medical,Automotation.
Development including Switching power supply,charger boards and Custom light fixture.
Q3: Can we inspect quality during production?
CREAT: We are welcome and transparent on each production process, inspect our production process and
check in house.
Q4: How can you ensure our information should not let the third party see our design?
CREAT: We are willing to sign NDA effect by customer side local law and promising to keep customers data in high
confidential level.
Q5: Do you have any minimum order request (MOQ)?
CREAT: We do not have MOQ requirement, we can support your projects starting from prototypes to mass productions
