Brand Name : CKS
Model Number : CKS-Customized
Certification : ISO9001
Place of Origin : CHINA
MOQ : 1 Piece/Pieces
Price : USD 0.5-5
Payment Terms : L/C, Western Union, MoneyGram, T/T
Supply Ability : 300000 Pieces per Month
Delivery Time : 90-120 work days
Packaging Details : 26CM*22.5CM*10.5CM
Copper thickness : 0.5-2.0 oz,1oz~3oz
Base material : FR4,Aluminium,Rogers
Board thickness : 1.6mm
Min. line width : 4mil,0.1mm
Min. hole size : 0.2 mm
Surface finishing : HASL,OSP,ENIG
Product name : Printed Circuit Board,94V0 PCB Design / PCB Manufacturing / PCB Assembly in China
Number of layers : 4-Layer,2/4/6/8/10/12 Layers
PCBA Manufacturers Thickness 1.6mm HASL Car Monitor Integrated Circuits
Electronic Design:
Project Management Engineers: 10+
1) Electronic software and hardware design
2) APP software design
3) Electronic product ODM & OEM 6) Electronic product assembly
Our main service:
Q&A
Q1. What is needed for quotation?
PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for production?
Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
Q4. MOQ?
There is no MOQ in CKS.We are able to handle Small as well as large volume production with flexibility.
Q5. Shipping cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
FR-4 Process capability | ||
NO | Item | Craft Ability |
1 | Surface Finish | HASL,Immersion Gold,Gold Plating,OSP,Immersion Tin,etc |
2 | Layer | 1-32 layers |
3 | Min.Line Width | 4mil |
4 | Min.Line Space | 4mil |
5 | Min.Space between Pad to Pad | 3mil |
6 | Min.Hole Diameter | 0.20mm |
7 | Min.Bonding Pad Diameter | 0.20mm |
8 | Max.Proportion of Drilling Hole and Board Thickness | 1:10 |
9 | Max.Size of Finish Board | 23inch*35inch |
10 | Rang of Finish Board′s Thickness | 0.21-3.2mm |
11 | Min.Thickness of Soldermask | 10um |
12 | Soldermask | Green,Yellow,Black,White,Red,transparent photosensitive solder mask,Strippable solder mask |
13 | Min.Linewidth of Idents | 4mil |
14 | Min.Height of Idents | 25mil |
15 | Color of Silk-screen | White,Yellow,Black |
16 | Date File Format | Gerber file and Drilling file,Report series,PADS 2000 series,powerpcb series,ODB++ |
17 | E-testing | 100%E-Test:High Voltage Testing |
18 | Material for PCB | High TG Material:High Frequence(ROGERS,TEFLON,TADONIC,ARLON):Haloger free Material |
19 | Other Test | Impedance Testing,Resisitance Testing,Microsection etc |
20 | Special Technological Requirement | Blind&Buried Vias and High Thickness Copper |
PCBA FUNCTION TEST
LASER MACHINE
SMT WORKSHOP
All test before shipping
AUTOMATIC SCREW MACHINE
APPLICATION
Product usage
OUR COMPANY
![]() |

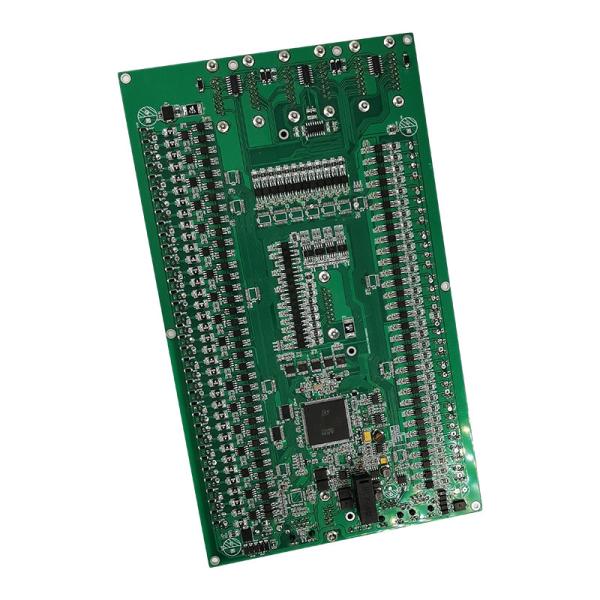

PCBA Manufacturers Thickness 1.6mm HASL Car Monitor Integrated Circuits Images |
